3DOF Servo Actuator Kit – TA16B 150mm Actuators with 750W Motors & AASD-15A-LB(X) Drivers

The 3DOF Servo Actuator Kit is a high-performance, ready-to-integrate solution designed for precise three-axis motion systems such as motion simulators, robotics platforms, and automation equipment. Built with industrial-grade components, this kit provides smooth and reliable three-degree-of-freedom (3DOF) motion.

Each actuator in this system is based on the TA16B model, featuring a 150mm stroke, 1610 lead screw, and 1:1 drive ratio, enabling fast travel speeds up to 500mm/s while maintaining excellent positional accuracy and load capacity of up to 127 kg.

Powering each actuator is a 750W servo motor (model: 80ST-M02430LPB) rated for 3000 RPM and delivering 2.39 N·m torque. Paired with three AASD-15A-LB(X) servo drivers (220V, 3A), the system ensures efficient, real-time control and compatibility with a wide range of automation platforms.

Whether you're building a motion simulator, robotic arm, or automated testing platform, this 3DOF servo kit delivers the strength, precision, and speed required for professional applications.

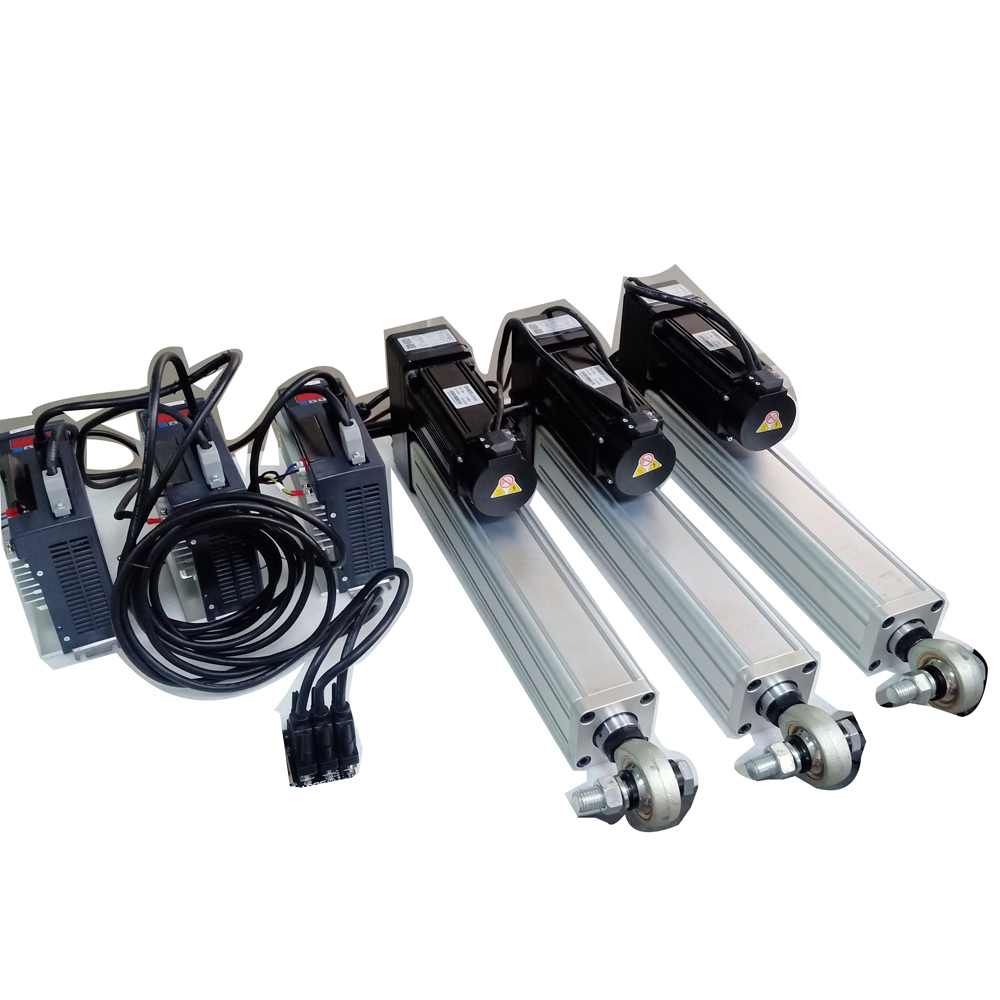

Kit Includes:

• 3× Servo Motor Actuators (Model: TA16B)

  • Stroke: 150mm

  • Max Load: 127 kg

  • Max Speed: 500mm/s

  • Lead Screw: 1610

  • Ratio: 1:1

• 3× Servo Motors (Model: 80ST-M02430LPB)

  • Power: 750W

  • Speed: 3000 RPM

  • Torque: 2.39 N·m

• 3× Servo Drivers (Model: AASD-15A-LB(X))

  • Input: 220V AC

  • Rated Current: 3A

Key Features:

• Complete 3-axis (3DOF) servo motion solution

• Powerful 750W servo motors with high torque and speed

• Fast actuator speed up to 500mm/s

• Strong load-bearing capacity (up to 127 kg per actuator)

• Industrial-grade servo drivers for stable control

• Suitable for simulators, robotics, CNC, and more
