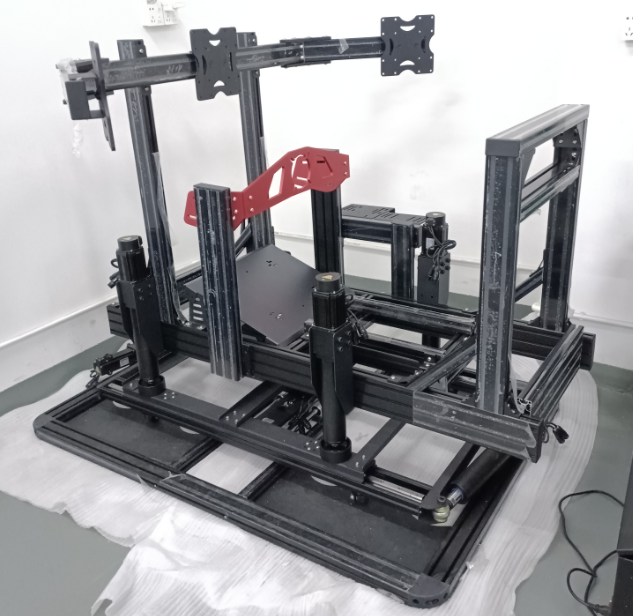

Four-Axis Pro Motion Racing Simulator Base Kit | 7-Axis Control, 40160 Frame, 150mm Stroke, Servo System

Build your ultimate racing simulator with this advanced Four-Axis Motion System Kit.

Designed for pro-level sim builders and motion platform enthusiasts, this kit includes 5 direct-connected servo electric push rods and 2 return electric cylinders (150mm stroke, 750W motors, 1610 spec) to deliver smooth and accurate motion feedback. Whether you're simulating GT racing, flight dynamics, or off-road realism, this high-performance system offers industrial-grade power and control.

Built on the robust 2TL S 40160 aluminum profile platform, the rig includes a complete motion control setup with 7 YMPC motor drivers, 7 DB25 cables, and a 7-axis motion control card—all anchored with precision brackets and two layers of iron sheet metal for ultimate stability.

⚙️ Key Specifications:

• System Type: 4-Axis Motion Base

• Actuators: 5 Direct-Drive Servo Electric Push Rods

• Return Cylinders: 2 Units (150mm Stroke, 750W, 1610)

• Motor Drivers: 7 YMPC Servo Motor Drivers

• Motion Control: 7-Axis Motion Control Card

• Frame Material: 2TL S 40160 Aluminum Profile Solution

• Brackets: 4 U-Shaped Brackets + 40160 Profile Mounting Kit (TSIM-VM)

• Wiring: 7 DB25 Control Cables

• Structural Base: 2-Layer Iron Sheet Metal Foundation

🚚 What's Included:

• 5 × Servo Electric Push Rods

• 2 × Return Cylinders (150mm Stroke)

• 7 × YMPC Motor Drivers

• 7 × DB25 Cables

• 1 × 7-Axis Motion Control Card

• 4 × U-Shaped Mounting Brackets

• Full 40160 Profile Mounting Set (TSIM-VM)

• 2 × Iron Sheet Metal Layers

🏷️ Ideal For:

• Custom Motion Racing Rig Builds

• Professional Sim Racing Platforms

• Multi-DOF Motion Simulators

• Flight or Driving Simulation Integration
