JBL Professional AW266 2-way Speaker - 500 W RMS - Black

JBL Professional AW266 2-way Speaker - 500 W RMS - Black

$3,653.00 USD
$4,853.00 USD $3,653.00 USD
Sale Sold out
Shipping calculated at checkout.
JBL Professional AW266 2-way Speaker - 500 W RMS - Black
2000 W (PMPO) - 11.81" - 1.50" - 51 Hz to 18 kHz - 8 Ohm

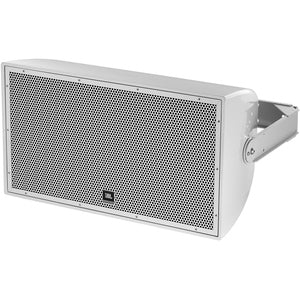

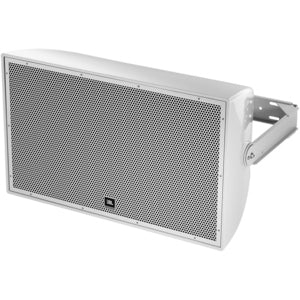

The AW266 is a high-power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can be used in either a vertical or horizontal orientation.

The enclosure is constructed of multilayer glass composite and is heavily braced to maximize low-frequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The system is equipped with a 400 W 70/100V transformer. A heavy-duty stainless steel U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The AW266 is part of JBL's AE Series, a versatile family of loudspeakers intended for a wide variety of applications.

Package Contents:
  • AW266 High Power 2-Way All Weather Loudspeaker with 1 x 12" LF
  • Transformer
  • U-Bracket

Manufacturer:

Harman International Industries, Inc

Manufacturer Part Number:

AW266-BK

Manufacturer Website Address:

http://www.harman.com

Brand Name:

JBL Professional

Product Series:

AE

Product Model:

AW266

Product Name:

AW266 High Power 2-Way All Weather Loudspeaker with 1 x 12" LF

Product Type:

Speaker

Crossover Type:

2-way

RMS Output Power:

500 W

PMPO Output Power:

2000 W

Woofer Driver Size:

11.81"

Tweeter Driver Size:

1.50"

Minimum Frequency Response:

51 Hz

Maximum Frequency Response:

18 kHz

Impedance:

8 Ohm

Maximum Crossover Frequency:

1.10 kHz

Sound Pressure Level:

126 dB

Sensitivity:

98 dB

Product Color:

Black

Product Material:



  • Fiberglass
  • Stainless Steel



Height:

16.1"

Width:

28.8"

Depth:

17.80"

Weight (Approximate):

55.56 lb

Package Contents:



  • AW266 High Power 2-Way All Weather Loudspeaker with 1 x 12" LF
  • Transformer
  • U-Bracket



Certifications & Standards:



IP56 per IEC 529



Limited Warranty:

5 Year
