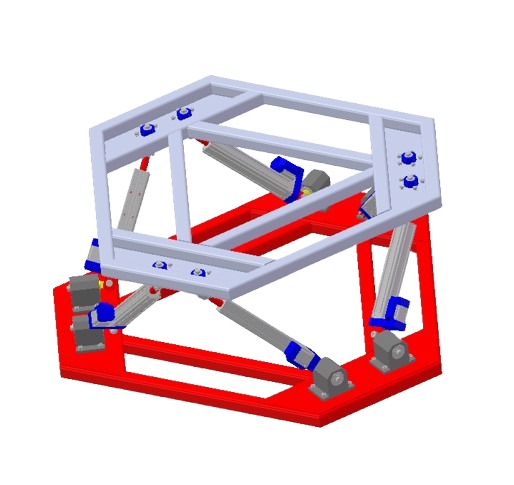

Six-Axis 6DOF Sheet Metal Motion Platform Kit – 300mm 750W Servo Actuators with Control System & TMPF-6DOF Bracket

The Six-Axis 6DOF Standard Iron Sheet Metal Motion Solution is a heavy-duty, precision motion platform kit designed for industrial-grade dynamic simulation, robotic movement, or automated test environments. This complete package integrates six high-performance servo electric push rods and a robust control system with customizable sheet metal structure for exceptional real-world motion applications.

Each actuator features a 300mm stroke, 750W servo motor (lead screw: 1610), delivering precise, smooth movement with high load-bearing capability. These actuators are paired with six YMPC motor drivers and six DB25 communication cables, ensuring reliable control and system stability.

At the heart of the system is a 7-axis motion control card, providing future scalability and highly responsive multi-axis synchronization. Structural integrity and motion articulation are provided by six sets of hinged sheet metal parts, along with a customizable upper and lower iron sheet metal frame and a TMPF-6DOF display bracket, designed to simplify integration and mounting.

Whether you're developing a six-axis motion simulator, testing automated equipment, or creating a complex robotic movement platform, this 6DOF actuator kit delivers precise and coordinated motion with a professional-grade mechanical framework.

Kit Includes:

• 6× Servo Electric Push Rods

  • Stroke: 300mm

  • Power: 750W

  • Lead Screw: 1610

• 6× YMPC Motor Drivers

• 6× DB25 Cables

• 1× 7-Axis Motion Control Card

• 6× Hinged Sheet Metal Mechanism Sets

• 1× Set of Customizable Upper and Lower Iron Sheet Metal Frame

• 1× TMPF-6DOF Display Bracket

Key Features:

• Full 6DOF multi-axis motion solution

• Long-stroke (300mm) actuators with high-power 750W servo motors

• Integrated 7-axis motion control card for seamless coordination

• Durable sheet metal structure with customizable design

• Includes display bracket and hardware for installation

• Ideal for simulators, testing platforms, robotics, and automation
