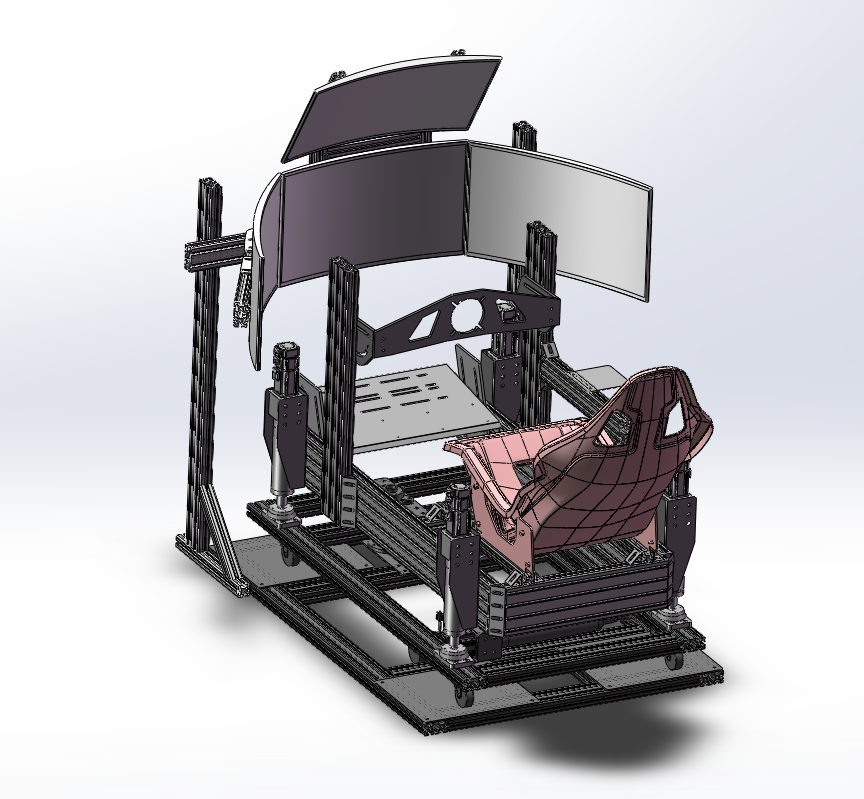

Six-Axis Motion Racing Simulator Base Kit | 40160 Frame, 750W Actuators, 7-Axis Control, TMPF-4DOF+TL+S

Push the limits of realism with this high-performance Six-Axis Motion Platform Kit – engineered for professional-grade racing and flight simulation.

Built on a solid 40160 aluminum profile frame, this kit features 5 direct-connected servo electric actuators and 1 return electric cylinder (150mm stroke, 750W, 1610 spec) to simulate high-fidelity motion with unparalleled accuracy and response.

With 6 YMPC motor drivers, a 7-axis motion control card, and a complete DB25 cable set, this platform is the perfect choice for simulation enthusiasts building a next-gen motion cockpit. The setup is reinforced with iron sheet metal layers, U-shaped brackets, and a full TSIM-VM profile bracket system for maximum structural integrity.

Key Specifications:

• System Type: 6-Axis Motion Base (TMPF-4DOF+TL+S)

• Actuators: 5 × Servo Electric Push Rods (Direct Drive)

• Return Cylinder: 1 × 150mm Stroke, 750W (1610)

• Motor Drivers: 6 × YMPC Servo Motor Drivers

• Motion Controller: 7-Axis Control Card

• Wiring: 7 × DB25 Signal Cables

• Frame: 40160 Heavy-Duty Aluminum Profile

• Mounting: 4 × U-Shaped Brackets + TSIM-VM Profile Brackets

• Base Support: 2 × Iron Sheet Metal Layers

What’s Included:

• 5 × Direct Servo Actuators

• 1 × Return Servo Cylinder (150mm Stroke)

• 6 × YMPC Drivers

• 7 × DB25 Control Cables

• 1 × 7-Axis Motion Control Card

• 4 × U-Brackets

• Full TSIM-VM Mounting Kit

• 2 × Iron Base Plates

Ideal For:

• High-End Sim Racing Motion Platforms

• Custom Flight or Car Simulator Rigs

• Engineering and Research Test Benches

• Professional Simulator Builds
