YMPC 4DOF Servo Actuator Kit – 4× TA16A Actuators with 80ST-M02430LPB 750W Motors & AASD-15A-LB(X) Drivers

The YMPC 4DOF Servo Actuator Kit is a high-performance, precision motion system tailored for applications such as motion simulation, industrial automation, and robotics. This kit delivers smooth, coordinated 4-degree-of-freedom (4DOF) motion through four powerful servo actuators, making it ideal for dynamic platforms or robotic systems.

Each actuator is based on the TA16A model, featuring a 150mm stroke, 1610 lead screw, and 1:1 transmission ratio — offering an optimal balance between speed and accuracy. Capable of handling up to 127 kg load at speeds up to 500mm/s, these actuators are driven by robust 80ST-M02430LPB 750W servo motors (rated at 3000 RPM, 2.39 N·m torque), providing reliable and responsive performance.

The system includes four AASD-15A-LB(X) servo drivers, engineered for 220V input and 3A output, and a complete motion controller box, enabling precise multi-axis synchronization and simplified system integration.

This complete, plug-and-play servo solution is ideal for simulation platforms, CNC automation, and custom motion control systems where precision, speed, and load capacity are key.

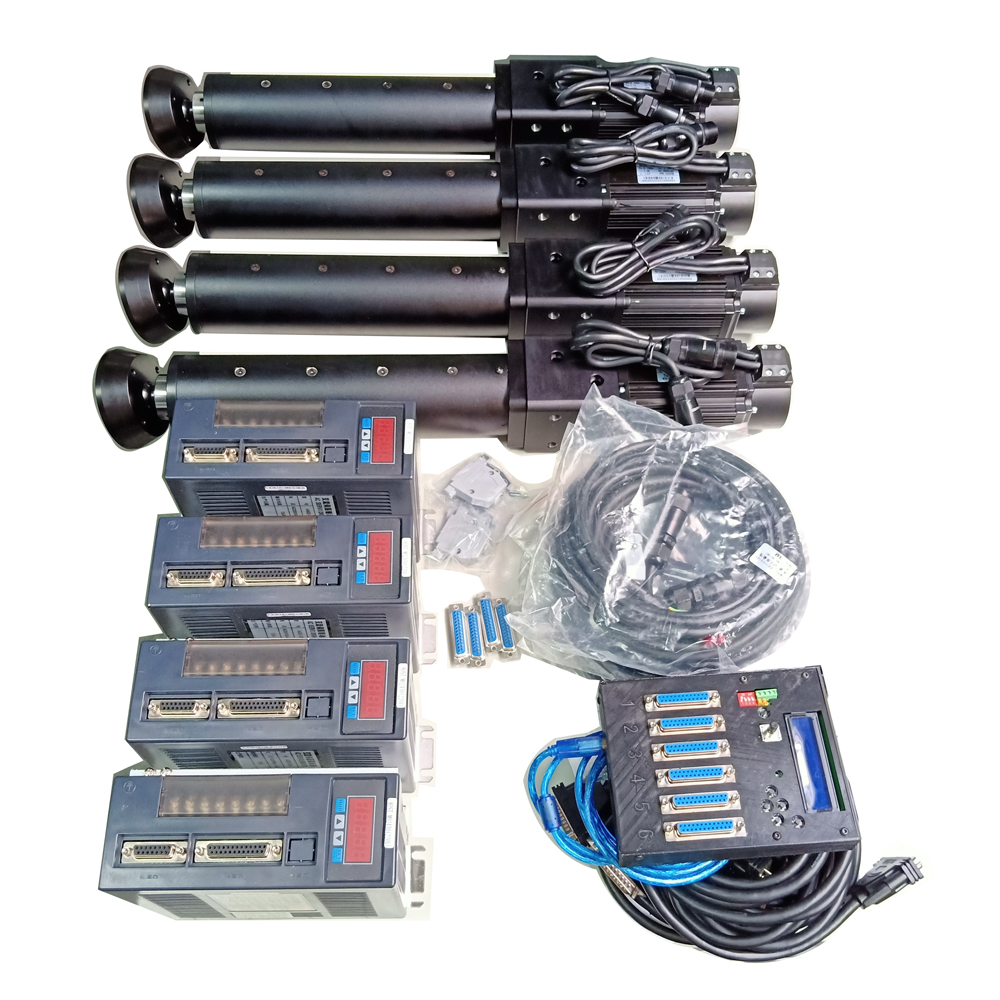

Kit Includes:

• 4× Servo Motor Actuators (Model: TA16A)

  • Stroke: 150mm

  • Max Load: 127 kg

  • Max Speed: 500mm/s

  • Lead Screw: 1610

  • Ratio: 1:1

• 4× Servo Motors (Model: 80ST-M02430LPB)

  • Power: 750W

  • Speed: 3000 RPM

  • Torque: 2.39 N·m

• 4× Servo Drivers (Model: AASD-15A-LB(X))

  • Input: 220V AC

  • Rated Current: 3A

• 1× Motion Controller Box (Complete Set)

Key Features:

• 4DOF precision motion with high load capacity

• 750W servo motors with fast response and smooth operation

• High-speed 500mm/s actuator performance

• Industrial-grade servo drivers and motion controller included

• Ideal for simulators, automated test rigs, and robotic arms
